main features

Third generation PID sensor, short response time, wide detection range

Large screen graphic LCD display, graphics menu display

Automatic backlight display, built-in lighting, easy to use in the dark environment

Built in temperature and humidity pressure sensor, automatic humidity compensation, to ensure the accuracy of the measurement

Without any tools to quickly replace the sensor and battery

Automatic identification of UV lamp models

Sensor and UV lamp automatic cleaning

Multi language display, support Chinese

Protection level is high, completely dust

Built in strong suction pump

Using large capacity lithium batteries and alkaline batteries

Indoor air quality testing

Environmental protection monitoring

Physical index

Size 25.5 * 7.6 * 6.4 cm

Weight 738g (containing lithium battery)

Basic performance

Sampling pump

Shell material engineering plastic, rubber jacket

Protection grade IP66, waterproof and dust

Anti electromagnetic radiation EMI/RF grade: Directive 89/336/EEC EMC

Ambient temperature C 50O ~ C -20o

Ambient humidity 0% ~ 95% relative humidity (no condensation)

Sensor parameters

Sensor type PID UV lamp 10.6eV sensor

Detection range of 0.1 ppm ~ 5000 ppm

Resolution 0.1 ppm

Response time (T90) 2S

The measuring accuracy of 10-2000 ppm 5% isobutylene calibration points

Correction coefficients are built for more than 220 kinds of VOC gases

Display and operation

Display large screen graphics LCD display, with automatic background light

Display language Chinese / English symbols

Display real-time detection value, peak value, battery voltage

Button 1 operation keys, 2 function keys, 1 light switches

Alarm parameters

Alarm mode 95dB@30cm buzzer, red LED

Warning signal gas exceeding standard, battery voltage, sensor fault

Setting high / low alarm limit for alarm point setting

Alarm point mode lock or auto reset

Sampling pump

Pump mode

Pump flow rate of 450 ~ 550cc/min

Power Supply

Battery rechargeable lithium ion battery: 4.2V/3300mAH

Alkaline battery box 4 AA batteries

Running time can work continuously for 12 hours (depending on the working environment and frequency of use)

Lithium battery charging time 8 hours

calibration

Calibration mode zero / extended calibration

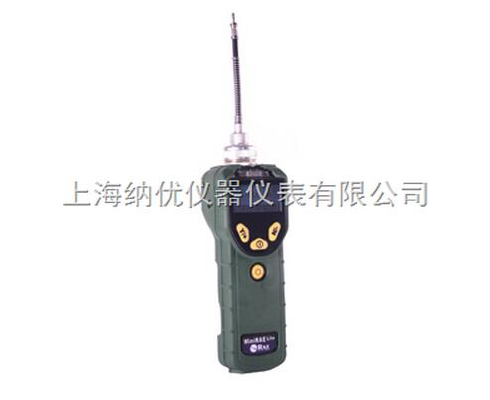

PGM-7300 host, sensor and UV lamp

Lithium battery, travel charger

Rubber protective sleeve

Air inlet pipe and water trap filter

Operation instruction

Data and software CD

Portable bag

Recommended configuration

Optional Accessories

THP sensor

The air outlet adapter

Scalable sampling probe (3m Teflon tube)

Teflon tube (diameter 2m, 5m)

Teflon tube (diameter 1.6mm, 1M)

Hard carrying case

Charging holder (USB interface)

Organic gas Suite

Isobutene standard gas

Common cross flow valve (CGA-600)

Self suction type constant flow valve (CGA-600 head)

Gas tank (2 bottles)
