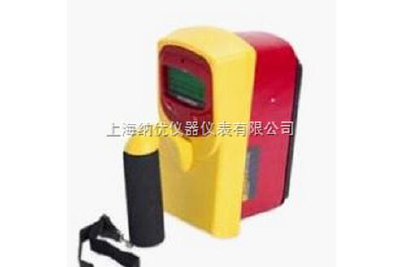

451P type pressure ionization chamber inspection instrument

Instrument introduction

451P type pressurized ionization chamber is a kind of portable battery powered instrument, which is designed for use in harsh environment and normal environment. The characteristic of the 451P type is a pressurized ionization chamber, which improves the sensitivity and improves the energy response for the measurement of gamma rays and X - rays.

451P type measuring instrument using micro processor and liquid crystal display technology, holding comfortable handle, there is a large diameter soft grip, is to reduce the fatigue caused by long time use and design. The measuring instrument case is composed of light weight and high strength material. When ordering, the user must specify a dose of R or Sv.

The display characteristic of the measuring instrument is to simulate the bar chart. 2 1/2 bit indicating value reading, low voltage indication holding mode indicator. The user control section is composed of a ON/OFF button and a state button. This instrument automatic zero adjustment and automatic range conversion. When the ambient light is dim, the circuit system of the display can automatically lighten the background light.

The ES-232 interface can be directly connected to the computer, and the Excel electronic table is used under the Windows display window, and the function of the instrument is enhanced. The instrument's software enables users to perform data retrieval, parameter selection, and provides a visual alarm indication of the virtual instrument display. Users can improve the software to meet the needs of special applications.

Instrument application:

451P type high pressure ionization chamber detector is widely used in medical and health care. 451P type high pressure ionization chamber detector is used for detecting around X ray diagnosis and radiation leakage radiation and scattering of the therapeutic room, is the ideal instrument for regional monitoring, can be used for X ray manufacturers, government agencies, state inspectors, biomedical research laboratories, and the airport baggage inspection department.

main features

* wide range of applications, including (alpha, gamma ray) non destructive testing, X- - ray and environmental testing

* battery powered

* automatic conversion range and automatic zero adjustment

* RS-232 communication interface

* dose rate and dose

*

Peak hold mode is convenient for peak capture measurement, and is especially suitable for diagnostic X-ray equipment.

* programmable flash display, alarm

* Automatic super bright liquid crystal display

* independent cumulative mode

* Windows Excel spreadsheet (optional)

* real time data recording

* can be downloaded and stored in the instrument

* 2700 data sets

* virtual instrument display with audio visual alarm indication

* support user instrument configuration and parameter selection

* user selectable mode of operation

Technical index

Detector: 300 CC high pressure air ionization chamber

Detection of rays: more than 1 MeV of beta rays, more than 25 KeV of gamma and X rays

Measuring range: 0-500 R/h, 0-5mR/h, 0-50mR/h, 0-500mR/h, 0-5R/h or 0-5 Sv/h, 0-50 Sv/h, 0-500 Sv/h, 0-5mSv/h, 0-50mSv/h (mR/h or Sv/h units can only choose one, buy customized)

Accuracy: the accuracy between 100% and 10% of the full scale at any measuring range is less than 10% and does not include the energy response; the calibration source is 137Cs

Control buttons: ON/OFF and MODE two buttons

Working mode: cumulative dose measurement mode: after the boot for 30 seconds, even if the mR/h or R/h as the unit to show the cumulative dose of the implementation of the measurement model

Peak hold mode: analog bar graph display a fixed maximum value is detected, and the numerical display and a map display is given the current value detected

Automatic features: automatic return to zero, automatic switching range, automatic background light

Environmental requirements: temperature range from - 20 degrees C to 50 degrees C, relative humidity from 0 to 100%, to a ground of negligible

Power supply: two 9V alkaline batteries, work 200 hours

Display: liquid crystal display analog / digital signal, with background light

Analog signal: 100 unit histogram display 6.4cm long. The histogram is divided into 5 sections, each of which is marked with the corresponding value of the instrument measurement range.

Digital signal: two - digit digital display, depending on the instrument range of effective digital 0, digital high in 1/4 (6.4 mm). Display unit of measurement, provided the battery voltage is too low and freeze mode indicator on the display.

Volume: 150mm * 200mm * 100mm

Weight: 1.11 kg
